Description

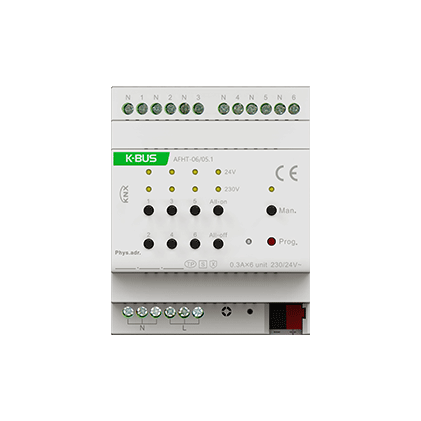

Supports 24V AC or 230V AC thermal drive. 6 independent valve outputs, Max. 300mA/channnel. 6 channels of room temperature controller: support heating/cooling mode, integrating 2-point and PI control algorithm, with 5 scenes functions. Installation: DIN-rail Mounted
features
Weight: 0.3KG
Dimension: 72 x 90 x 64 mm
Bus voltage: 21-30V DC, via the KNX bus
Bus current: <13.5mA/24V, <11.5mA/30V
Bus consumption: <345mW
Voltage: 24V / 230V ACValve channel: 6 channels
Switching current: ≤300mA, per channel (Ambient
temperature35℃)
Static Current: ≤ 200mA
Voltage: 24V / 230V AC
Protection: Short-circuit / overload protection
Connection: KNX, Bus connection terminals (Red/Black)
Operation: – 5 °C ... + 45 °C
Storage: –25 °C ... + 55 °C
Transport: – 25 °C ... + 70 °C
Humidity: <93%, except dewing
Environment: On 35mm mounting rail
