Description

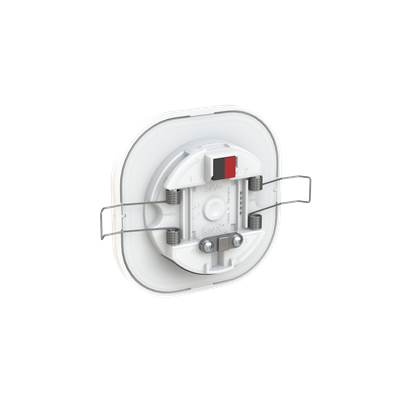

Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 8 m, max. 10 m and max. 14 m. Walking persons Ø: max. 10 m, max. 12 m and max. 16 m. Visible height 23 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flush mounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.
Installation
Mounting Type: Surface Mounted
Mounting Position: Ceiling
Mounting Height: Optimum 2 m
Modular Components Included: Complete Device
Dimension
Product Net Width:91 mm
Product Net Height:91 mm
Product Net Depth / Length:45 mm
Product Net Weight:96 g
Built-In Depth (t2):22 mm
