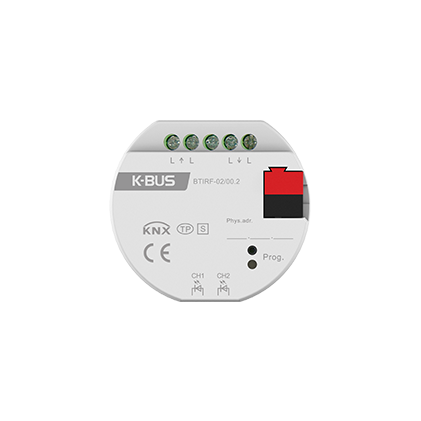

GVS KNX - IR Transmitter, Flush-mounted, 2-Fold

https://www.expertsmart-eg.com/web/image/product.template/26268/image_1920?unique=561c06c
(0 review)

Transimitting distance max. 2m, 1 fold 10A current detection. Support normal IR control of 30 IR codes, for air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.Installation: Flush Mounted, fits in 86*86mm and German 60mm wall boxes.

9,759.83 LE 9759.83 EGP 9,759.83 LE VAT Excluded

9,759.83 LE VAT Excluded

Call Us For Quotation

  • Brand
  • Model

This combination does not exist.

KNX GVS
Brand: GVS
Model: BTIRF-02/00.2

Terms and Conditions
- Due to the import, and currency exchange rate change, please contact us to check the prices and stock availability before ordering..
- Exchange and return conditions apply within the 14-day period from the date of receipt of the item if the item is in the same condition as it was in at the time of sale.
-Shipping: 2-3 Business Days.



Description

Transimitting distance max. 2m, 1 fold 10A current detection. Support normal IR control of 30 IR codes, for air-condition control up to 266 IR codes. Support DCA APP in ETS configuration.Installation: Flush Mounted, fits in 86*86mm and German 60mm wall boxes..

features

Weight: 0.04kg

Dimension: φ53×23.5mm

Bus voltage: 21-30V DC, via the KNX bus

Bus current: <6.5mA, 24V ;<6mA, 30V

Bus consumption: <180mW

Dynamic current: <9.5mA, 24V ;<8mA, 30V

Connection: KNX, Bus connection terminal(Red/Black)

Operation: -5 °C ... 45 °C

Storage: -25 °C ... 55 °C

Transport: -25 °C ... 70 °C

Humidity: <93%, except dewing

IR wavelength: 940nm
