HDL

OUTPUTS
■ Supports security setting, area setting and scene setting.
■ Channel 1 and 2 are trailing edge dimming outputs, with up to totally 1.6A current output.
■ Channel 3 to 12 are relay outputs, each channel is 5A.
■ Channel 9 and 10, 11 and 12 can be used for curtain control.

INPUTS
■ 14-channel dry contact input.
■ 3-channel indoor doorbell control and 3-channel indicator output.
■ 1-channel outdoor door bell control and 3-channel indicator output.
■ 1-channel door bell relay control.

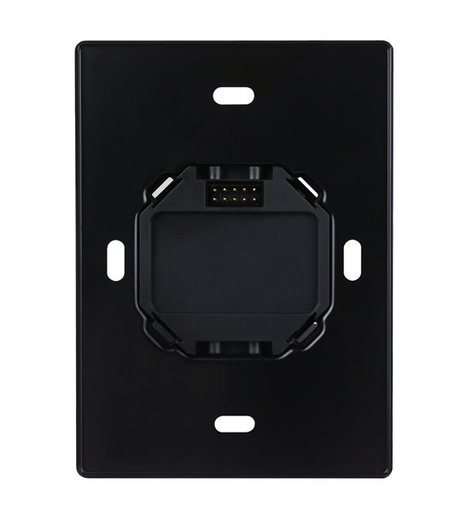

Panel Power Interface US, provides the DC power and communicates with the panel switch signal, it supports different US Type Smart Panel.

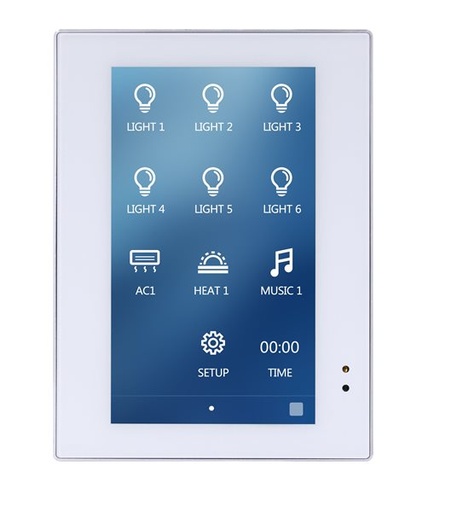

4.3 inch Enviro Touch Screen with Metal Frame

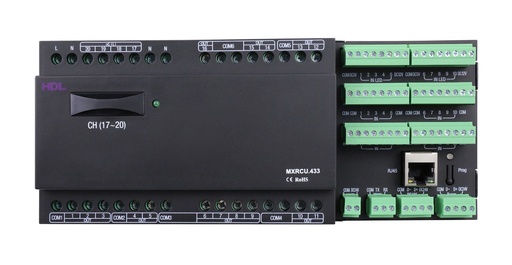

Built-in 2ch IR control and Logic automation function RCU Room Control Unit 2.0, DIN-Rail Mount, HDL BUS PRO, RJ45, INNER RJ45, UDP/IP Network Interface, Totally 23 Channel output: Relay 1-10: 5A, Relay 11-12:16A, Relay 13-20: 3A including one channel for Emergency light, Mosfet Dimming 21-23: 1A, 48 Ch Dry contact input/output. 1ch Door Bell relay, built-in 2ch IR control and Logic automation function.
